Product introduction
The greenhouse track transport vehicle is a remote-controlled transportation tool used in all greenhouses. This vehicle is available in multiple models, including upper box, lower box, straight track and curved track, and can be customized according to different shapes.
Feature Description
1. High load capacity
2. Convenient transportation
3. High remote control sensitivity
4. Made of high-quality base materials such as galvanized steel, it is sturdy and durable
5. High anti-corrosion surface treatment
Application: It is suitable for warm winter greenhouse.greenhouse and other types of greenhouse greenhouse. seedling greenhouse, multi-storey greenhouse, simple solar.
Upper box type characteristic
★ High load capacity
★ Convenient transportation
★ The battery is easy to disassemble
★ The control box is located on the platform and can carry people
★ High remote control sensitivity
★ Select high-quality substrates such as galvanized steel, which aresturdy and durable.
★ High anti-corrosion surface treatment
Lower box type characteristic
★ High load capacity
★ Convenient transportation
★ The battery should not be disassembled
★ Control the box under the platform to increase the platform's cargo carrying area.
★ High remote control sensitivity
★ Select high-quality substrates such as galvanized steel, which are sturdy and durable.
★ High anti-corrosion surface treatment
Specification and dimension
Specifications and dimensions 2300 in length,500 in width,and 900mm in height Table Height 300mm Maximum load capacity(Kg) 1000KG Net weight 82KG Voltage 48V Motor brand Suming Battery brand Superpower/Tianneng Transportation speed 0-11KM Battery capacity 12A/20A/32A Motor power 500W/650W/800W control mode Manual/Remote Control Walking mode Straight/Turn Track center distance 400mm Track materials 30x30 angle iron/φ25 round tube Front and rear radar Can be added Vehicle surface
anti-corrosionGalvanized steel+high-temperature
electrostatic sprayingSupport customization of irregular specifications and sizes Part introduction

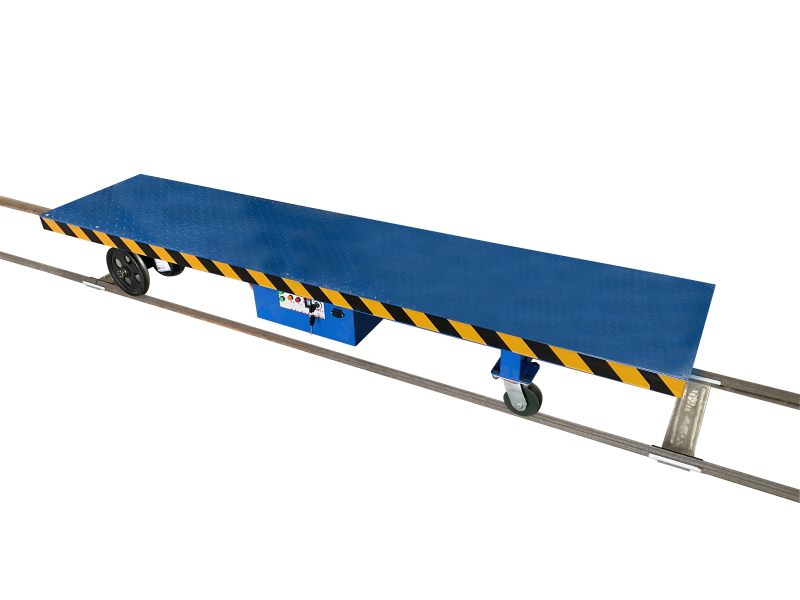

Box body on land rail transport vehicle
Countertop height: 300mm.
Maximum load capacity (kg) : 1000KG.
Net weight: 82KG.
Control mode: Manual/Remote control.
Walking style: straight/turning.
Vehicle surface anti-corrosion: Galvanized steel + high-temperature electrostatic spraying.
Front and rear radars: Can be installed.
It includes one remote control and one charger.
The control box is on the platform and can carry people.

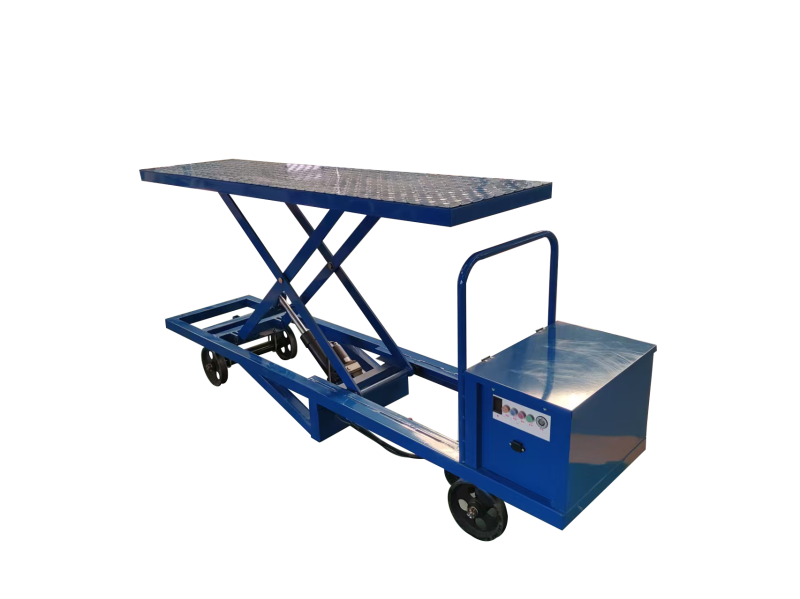

Support customization of irregular specifications and sizes.Land rail transport vehicle lifting payment
Countertop height: 300mm.
Elevation: 1100mm.
Maximum load capacity (kg) : 1000KG.
Control mode: Manual/Remote control.
Walking style: Curved style.
Vehicle surface anti-corrosion: Galvanized steel + high-temperature electrostatic spraying.
Vehicle style: Upper box type.
It includes two remote controls and one charger.

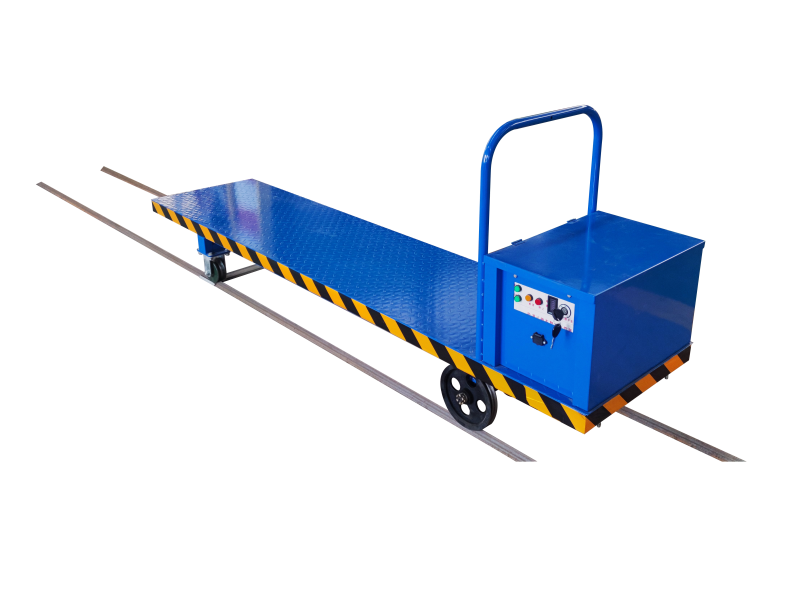

Lower box of land rail transport vehicle
Countertop height: 300mm.
Maximum load capacity (kg) : 1000KG.
Net weight: 82KG.
Control mode: Manual/Remote control.
Walking style: straight/turning.
Vehicle surface anti-corrosion: Galvanized steel + high-temperature electrostatic spraying.
Front and rear radars: Can be installed.
It includes one remote control and one charger.
The control box is located under the platform to increase the loading area of the platform.

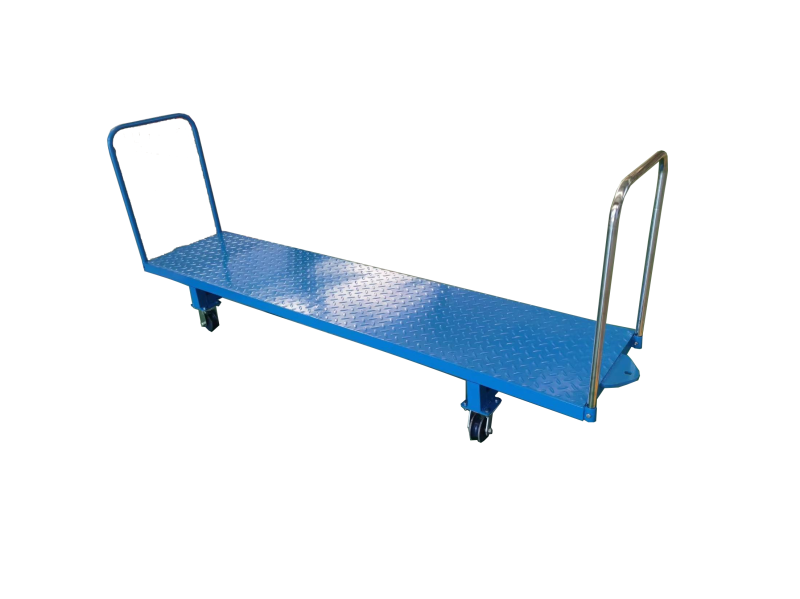

Support customization of irregular specifications and sizes.Turnover vehicle
The track turnover vehicle has a powerful transportation capacity. With standardized connection components, it can achieve rapid connection at the beginning and end during operation, upgrading a single turnover vehicle to a multi-section formation transportation unit. This modular connection design, through the guidance and support provided by the track, not only significantly increases the single transportation capacity, but also enables flexible adjustment of the number of formations according to actual needs, achieving large-scale and intensive transportation of goods, effectively improving transportation efficiency and reducing unit transportation costs.
Track and accessories
Track supports, connectors and track-changing devices constitute the core support system of the track system, which is the key to ensuring the safe operation and efficient scheduling of the track. As the foundation of the track, the track support can meet diverse demands such as heavy-load transportation and high-speed operation. The track-changing device, with turnouts (single switch, symmetrical switch, triple switch, etc.) as its core, enables transportation equipment to flexibly switch to different lines, greatly enhancing the transportation efficiency and dispatching flexibility of the track system. It is an indispensable and crucial link for the efficient operation of the track transportation network.
