Product Introduction
The cooling system of greenhouse is composed of negative pressure fan, wet curtain and other equipment, fan wet curtain system is the core equipment of greenhouse environment regulation in summer, through the synergistic effect of mechanical ventilation and water vapor evaporation and cooling, to realize the greenhouse temperature lowering, humidity regulation and air circulation, and to create a suitable growing environment for crops.

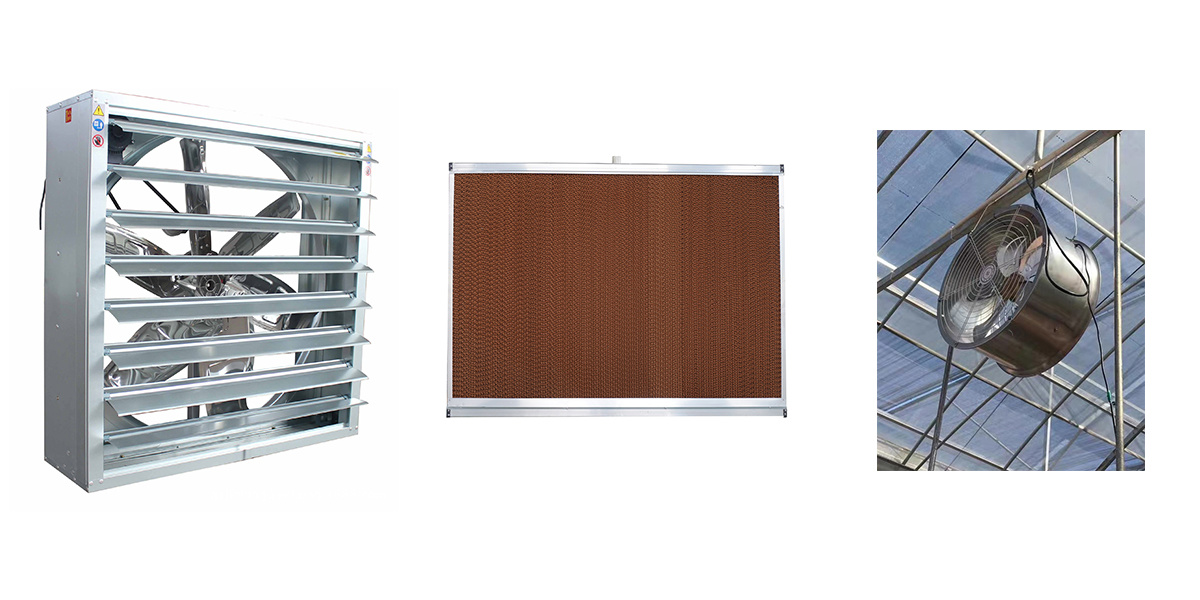

System distribution

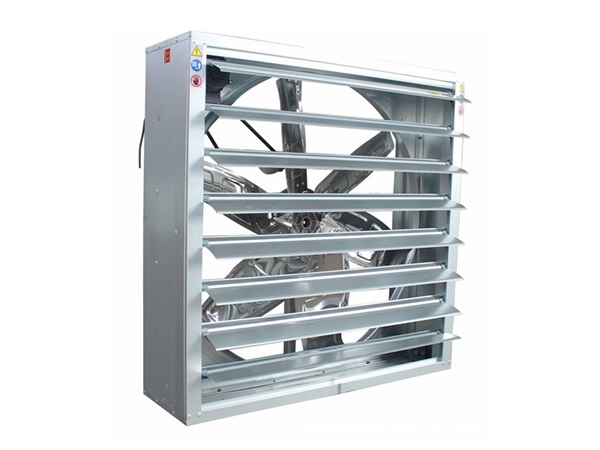

Negative pressure fan parameters
Heavy hammer type Push pull type Model Power(KW) Parameter（mm） Model Power（KW） Parameter（mm） 400 0.12 Outer frame size: 400 * 400 * 320, galvanized sheet outer frame, aluminum alloy fan blades, directly connected motor 500 0.18 Outer frame size: 480 * 480 * 320, galvanized sheet outer frame, aluminum alloy fan blades, directly connected motor 600 0.37 Outer frame size: 600 * 600 * 380, galvanized sheet outer frame, aluminum alloy fan blades, directly connected motor 800 0.37 Outer frame size: 800 * 800 * 400, made of galvanized sheet material and stainless steel fan blades 800 0.37 Outer frame size: 800 * 800 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 900 0.55 Outer frame size: 900 * 900 * 400, made of galvanized sheet material and stainless steel fan blades 1000 0.55 Outer frame size: 1000 * 1000 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 1000 0.55 Outer frame size: 1000 * 1000 * 400, made of galvanized sheet material and stainless steel fan blades 1100 0.75 Outer frame size: 1100 * 1100 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 1100 0.75 Outer frame size: 1100 * 1100 * 400, made of galvanized sheet material and stainless steel fan blades 1220 1.1 Outer frame size: 1220 * 1220 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 1220 0.75 Outer frame size: 1220 * 1220 * 400, made of galvanized sheet material and stainless steel fan blades 1380 1.1 Outer frame size: 1380 * 1380 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 1380 1.1 Outer frame size: 1380 * 1380 * 400, made of galvanized sheet material and stainless steel fan blades 1530 1.5 Outer frame size: 1530 * 1530 * 450, made of galvanized sheet material, stainless steel fan blades, with a motor mounted on top 1530 1.5 Outer frame size: 1530 * 1530 * 400, made of galvanized sheet material and stainless steel fan blades Wet curtain parameters

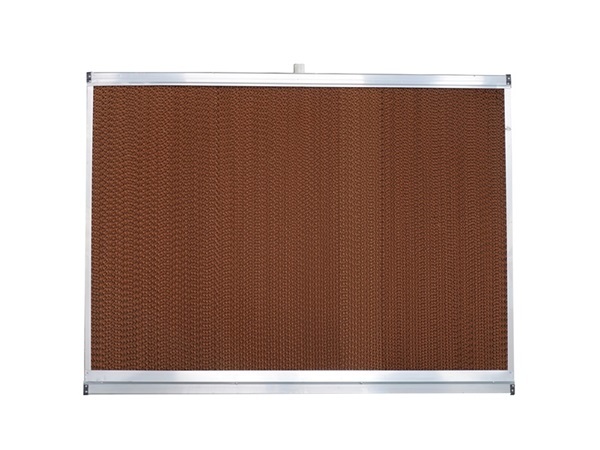

Thickness 100mm Thickness 150mm Material Height * Length (meters) Material Height * Length (meters) Aluminum alloy 1.5*2 Aluminum alloy 1.5*2 Aluminum alloy 1.5*3 Aluminum alloy 1.5*3 Aluminum alloy 1.5*4 Aluminum alloy 1.5*4 Note: The size of the water curtain can be customized according to customer requirements.

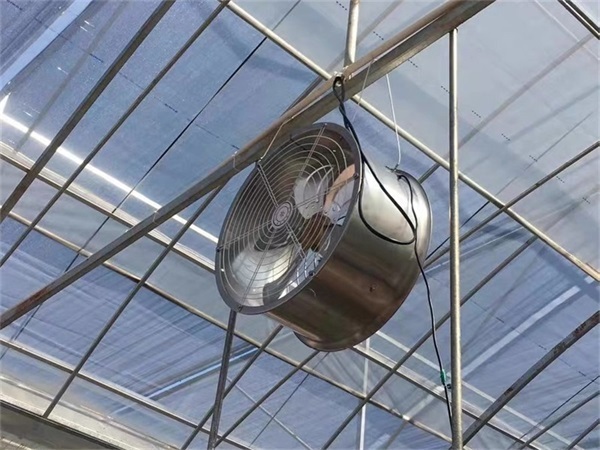

Parameters of circulating fan
Model Parameter Air volume Fan blade material Shell thickness Motor Power W Package size 400 Powder coating 460*460*270mm 3200m³/h 4-leaf aluminum 1mm 180 480*480*290mm 500 Powder coating 560*560*270mm 4500m³/h 5-leaf aluminum 1mm 180 580*580*290mm 600 Powder coating 660*660*270mm 9800m³/h 5-leaf aluminum 1mm 550 680*680*290mm 400 Stainless steel 460*460*270mm 3200m³/h 4-leaf aluminum 1mm 180 480*480*290mm 500 Stainless steel 560*560*290mm 4500m³/h 5-leaf aluminum 1mm 180 580*580*290mm 600 Stainless steel 660*660*290mm 9800m³/h 5-leaf aluminum 1mm 550 680*680*290mm Product Display
