Electric film winder series

It is suitable for all kinds of film planting greenhouses and breeding greenhouses ventilated electric film roling equipment with high efficiency.

Email:

sale@xinyegreenhouse.com

Phone:

+86-19131793222

Inquire Now

Product introduction

It is suitable for all kinds of film planting greenhouses and breeding greenhouses ventilated electric film roling equipment with high efficiency, labor saving, long life, stable operation and high automatic control and adjustment accuracy.

Single axis technical parameters

Model	150W	Model	100W
Voltage	DC24V	Voltage	DC24V
Currents	4.5A	Currents	4.0A
Torque	70N/M	Torque	60N/M
Speed	3.5r/min	Speed	3.5r/min
Reduction ratio	815:1	Reduction ratio	815:1
Host weight	3.0kg	Host weight	2.8kg

Dual axis technical parameters

Model	150W	Model	100W
Voltage	DC24V	Voltage	DC24V
Currents	4.5A	Currents	4.0A
Torque	70N/M	Torque	60N/M
Speed	3.0r/min	Speed	3.0r/min
Reduction ratio	953:1	Reduction ratio	953:1
Host weight	3.7kg	Host weight	3.5kg

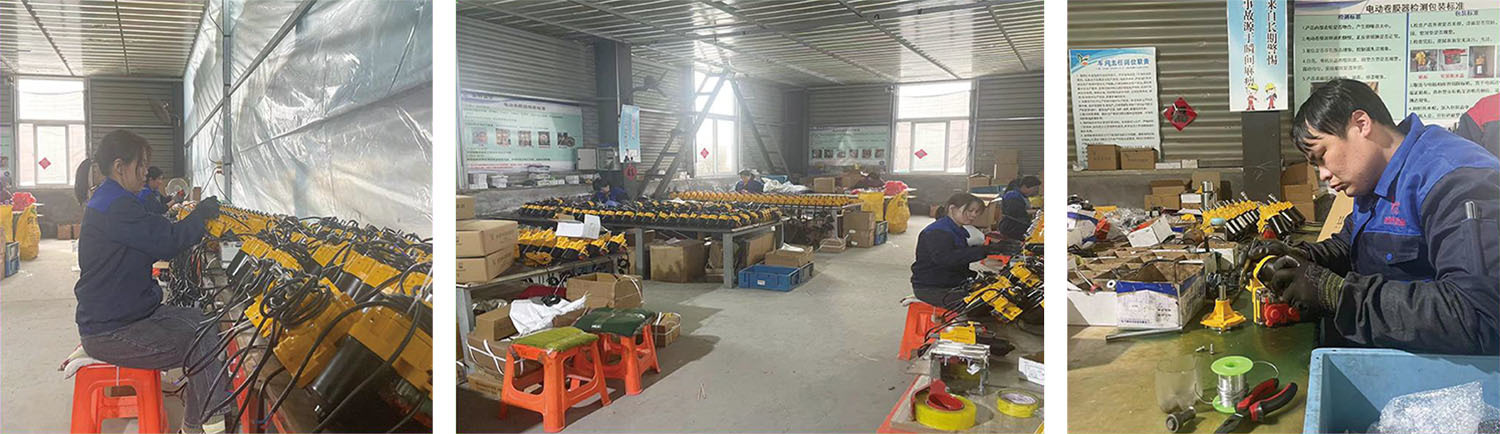

Production scenario

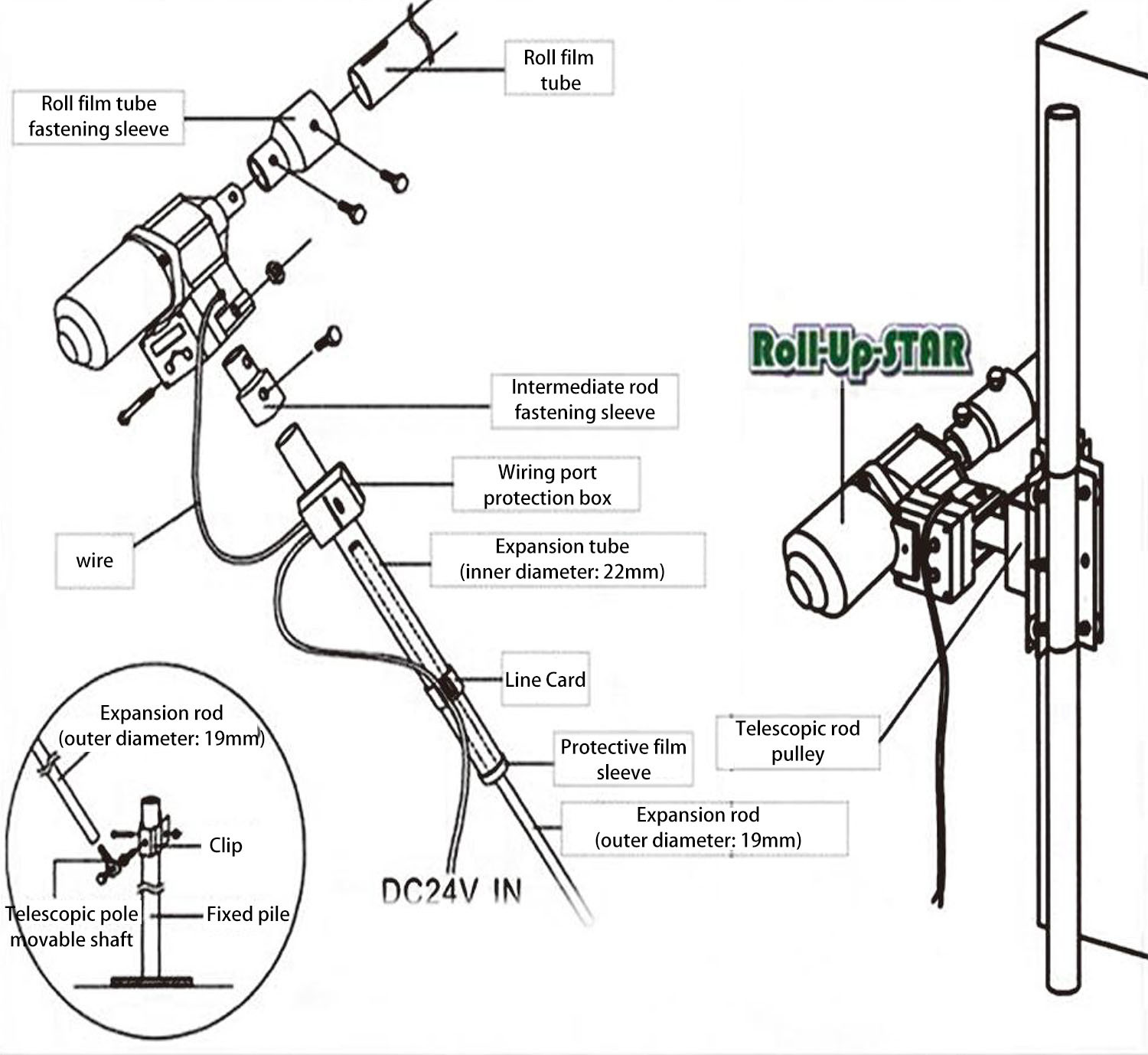

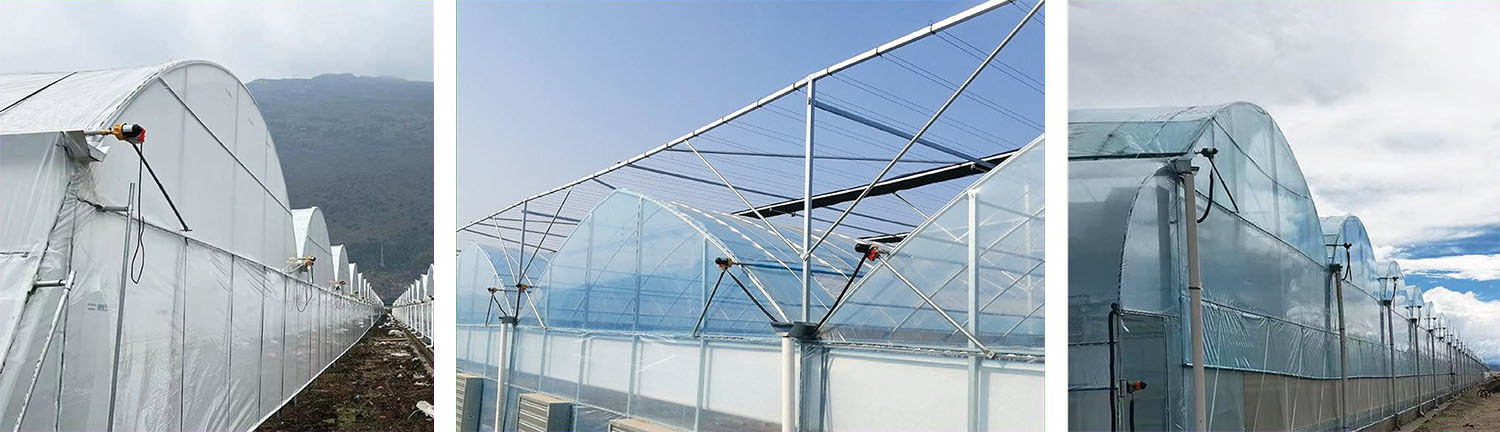

Application: lt is used to open and close the side window and top window of plastic film greenhouse.
